Rear detection zone
Three or four infrared sensors watch the space behind the truck every time it reverses. People, poles, cars and bins all register, day or night.
Search Eye® automatic reverse braking
The truck stops. Even when the driver doesn’t see it.
Search Eye detects people and objects behind a reversing truck, alerts the driver and applies the air brakes automatically. It fits any commercial vehicle with air brakes.
Quick answers
What fleets ask first.
Trusted on 550+ fleets for 49 years, including the city fleets of New York and Toronto.
- How long to install?6 hours or lessper truck
- Who installs it?You chooseyour shop, a Global partner or the factory
- How many sensors?3 or 4GS3000A or GS4000A, matched to the truck
- What technology?Infraredrear sensors that see people and objects
- Can the driver override it?YesAuto Brake OFF, and the sensors keep warning
- What does the driver see?A control boxlights and a tone in the cab
- Any subscription?Noneone-time purchase. The system is yours
- How much does it cost?Get a quotepriced for your trucks and fleet size
How it works
Three steps, every time the truck reverses.
The driver does not press anything. Search Eye turns on with reverse and resets itself when the truck drives forward.
- 01
System on
Ignition on, truck in reverse. The green System On light comes on in the cab.
- 02
Scanning
Rear infrared sensors watch the space directly behind the truck.
- 03
Detected. Brakes applied
The moment something is there, the air brakes apply. Warning light and tone in the cab.
Real trucks. Real stops.
How Search Eye works
Built for the way trucks really back up.
Alleys at 5 a.m., crews on foot, docks and containers. Each feature exists because a fleet needed it.
In-cab alerts
A green light confirms the system is on. When something is detected, a yellow light and a tone tell the driver right away.
Automatic air braking
The system applies the truck’s own air brakes. It does not wait for the driver to see, think and react. The truck simply stops.
Driver override, with a safety net
Backing up to a dock or a container on purpose? Press Auto Brake OFF. A red light and pulsing tone stay on, and the sensors keep warning.
Built for job sites too

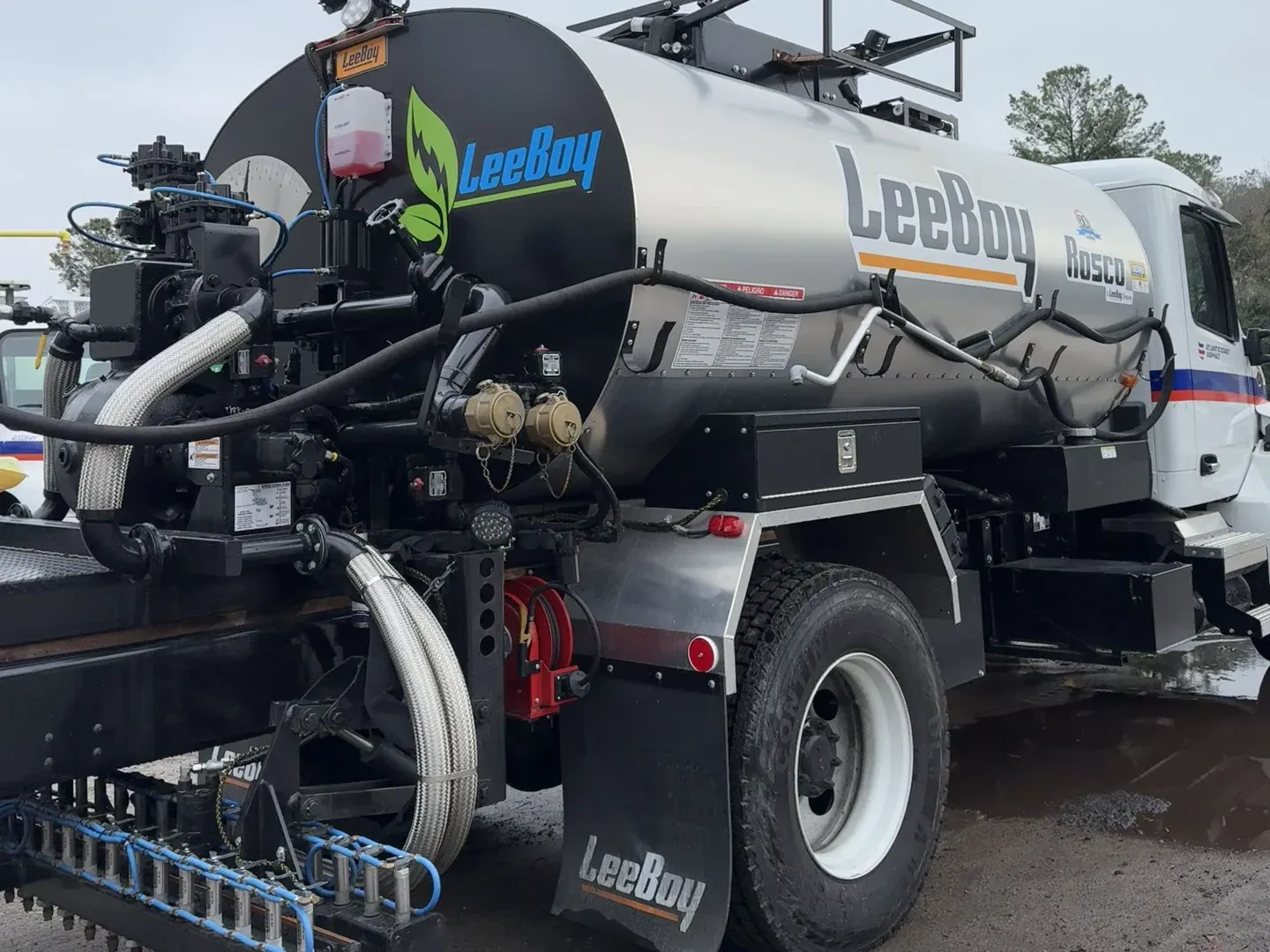

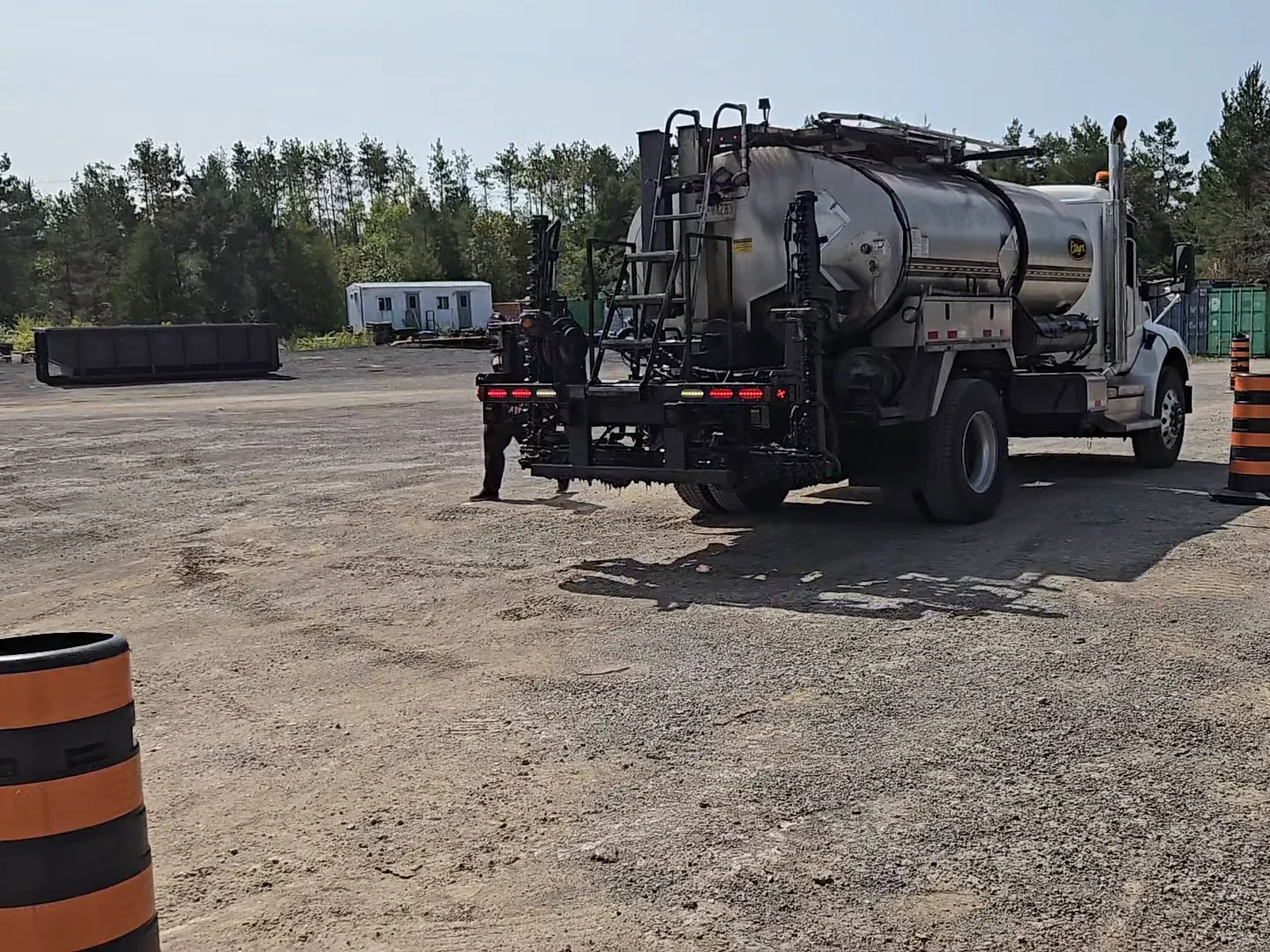

Dump, mixer, paving and tack trucks get the same protection for the crew working behind them. Any truck with air brakes.
System anatomy
One box. Five parts. Cab to bumper.
Everything ships in one medium-sized box. It connects to the truck’s existing air brakes and does not affect other systems.

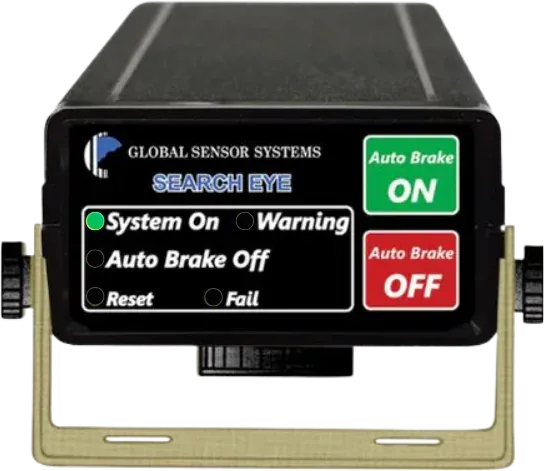

Green System On, yellow Warning, red Auto Brake OFF. Audible alerts.

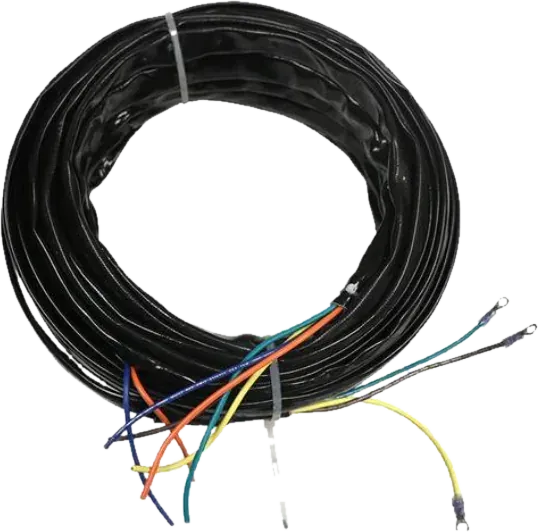

Runs from the cab along the frame to the rear of the truck.

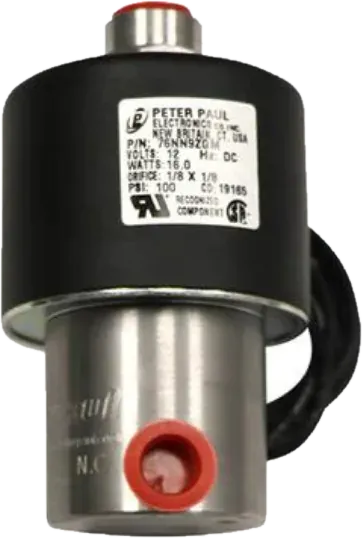

Solenoid on the existing air line. Applies the air brakes.

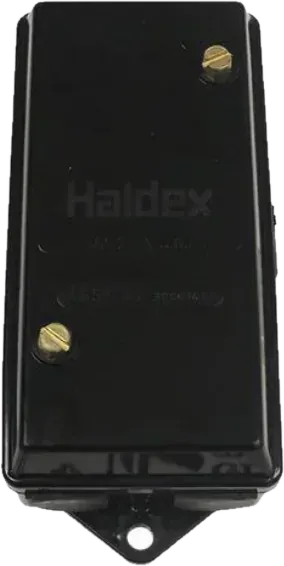

Connects the harness, sensors and brake valve.

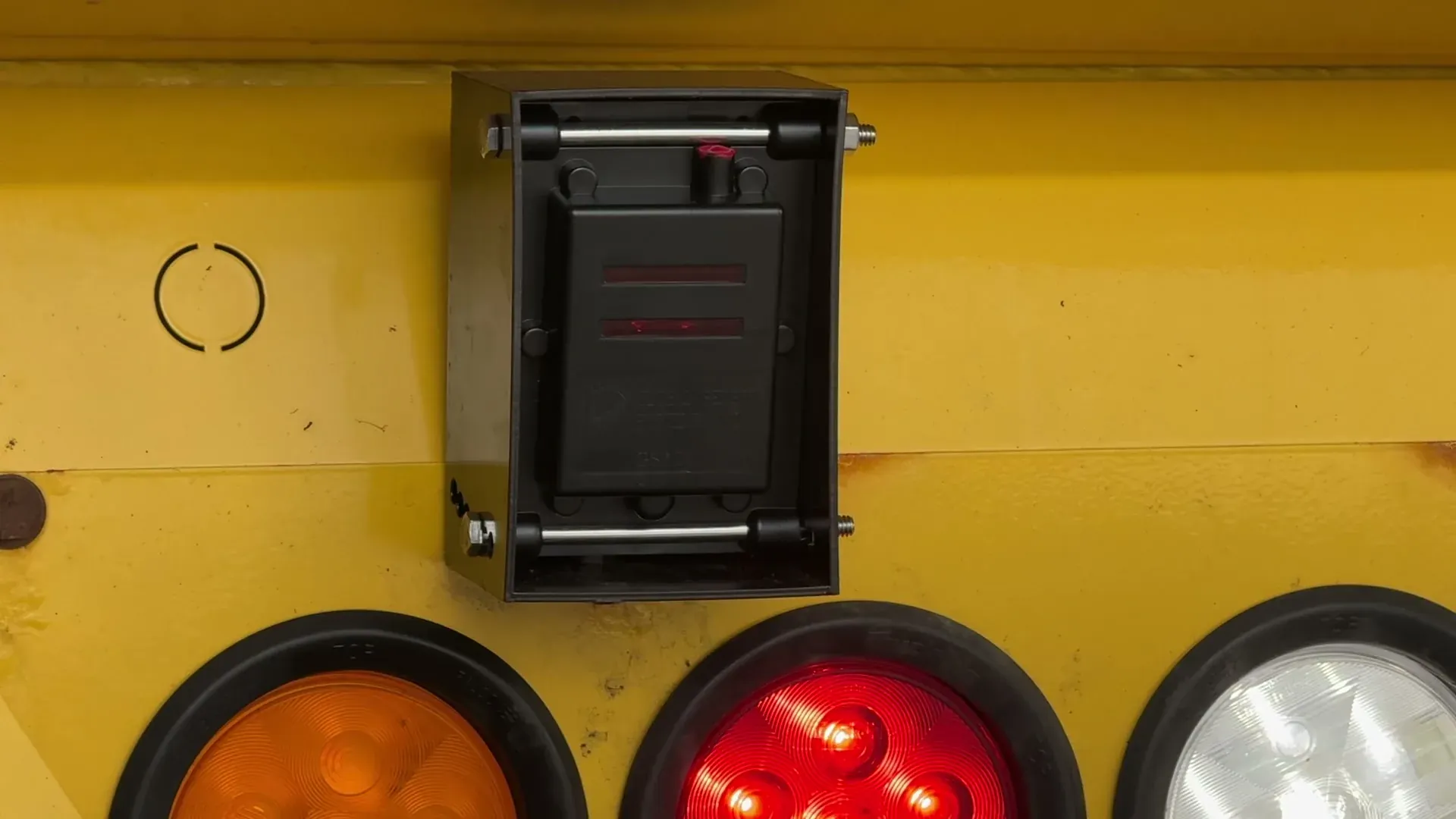

Three (GS3000A) or four (GS4000A), in protective mounting boxes.
Models
Three sensors or four. Matched to the truck.
The right model depends on the truck size and how wide the rear blind spot is. We help you choose per truck type.
GS3000A
Three rear sensors. The standard setup for most rear-load garbage trucks and construction trucks.
GS4000A
Four rear sensors for wider bodies and larger trucks that need more rear coverage.
Overhead Protection
A GS3000A with extra top-mounted sensors that catch overhead objects like branches, wires and structures.
Active vs. passive safetyCameras warn.
Cameras warn.
Search Eye stops the truck.
Search EyeAutomatic braking
- Someone behind
- Sensors detect
- Truck stops
Backup cameraDepends on the driver
- Someone behind
- Screen shows it
- Driver notices
- Driver decides
- Driver brakes
Specifications
The numbers that matter.
One system. Any truck with air brakes.
- ≤6hrs
- to install
- 2yr
- warranty
- 10+ yrs
- sensor life
- 3
- languages of manuals
Installed on every kind of truck
All specifications and what is in the box
- Infrared sensors3 or 4
- Control boxIn the cab
- Harness75 ft
- Junction boxAt the rear
- Brake valveOn the air line

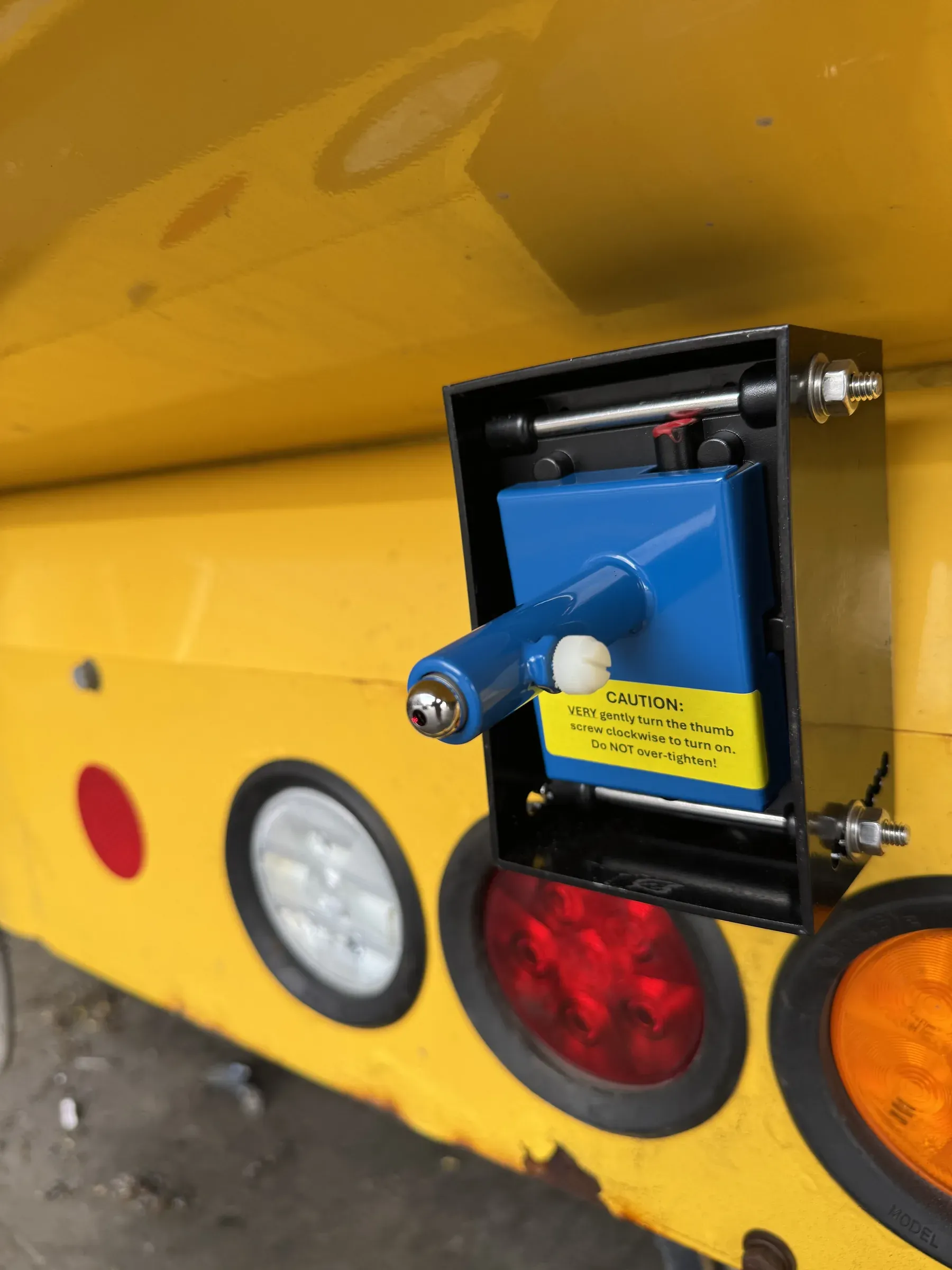

- Alignment toolLaser
| Detection technology | Infrared |
|---|---|
| Models | GS3000A (3 sensors), GS4000A (4 sensors) |
| Options | Overhead Protection, Non-Auto Brake (alerts only), body-specific configurations |
| Compatible vehicles | Any commercial vehicle with air brakes |
| Activation | Automatic in reverse, ignition on |
| Driver override | Auto Brake OFF, with red light and pulsing tone. Sensors keep warning |
| Reset | Returns to automatic braking on its own |
| Install time | 6 hours or less per truck |
| Effect on other truck systems | None |
| Sensor life | 10+ years if not physically damaged |
| Daily maintenance | Wipe the sensor lenses |
| Warranty | 2 years |
| Purchase model | One-time purchase, no subscription |
| Manuals | English, French, Spanish |
Already on the road
550+ fleets already stop on their own. Is yours one of them?
Haulers, body builders and cities across the United States and Canada run Search Eye on their trucks.
Some of our customers
In their words
Why our clients choose Global.
“Other camera and radar systems alarm nonstop, so drivers ignore or unplug them. Global’s system only chimes for real danger and can be bypassed when needed.”
“I like having the sensor on the back of my truck because it makes me feel safer, because accidents do happen.”
“Knowing that these systems have the potential to save lives is deeply meaningful. We take pride in distributing these systems as it allows us to contribute to the solution and be part of something impactful.”
“A sensor system may cost the same as one accident, but it’s going to prevent hundreds and thousands of incidents a day between mailboxes, cars and people.”
“We choose Global Sensor Systems because their products meet our needs and our standards in the security aspects of operating heavy machinery, and it has saved us a lot of incidents and repairs on our fleet, which resulted in less operating cost and maintenance costs.”
“Anything providing safety to our workers and community is good for everyone.”
“This system enables us to have a safer fleet due to some impressive technology.”
“The NYC Department of Sanitation calls our system "bulletproof". They have had it mandated on their refuse trucks for over 25 years and counting.”
Installation
Installed your way. Supported for the life of the truck.
6 hrsor less per truck
01
Your mechanics
Your shop installs it with our manuals and support.
02A Global partner
A certified partner near you does the install.
03At the factory
Your body builder fits it before delivery.
Yours to keep
One purchase. No subscription. You own the system.
- No monthly fees or contracts
- 2-year warranty
- Sensors last 10+ years if not physically damaged
- Global AcademyVideo courses, quizzes and certificates for drivers and mechanics
- Guides and videosClear install manuals in English, French and Spanish
- A real team behind youOn the phone during installs, in your yard for rollouts and training days
What is automatic reverse braking?
Automatic reverse braking is a safety system that detects objects behind a truck while it reverses and applies the brakes on its own. Global Sensor Systems’ Search Eye uses rear infrared sensors and the truck’s existing air brakes, so the truck stops even if the driver did not see the hazard.
Does Search Eye replace backup cameras?
No. They do different jobs and work well together. A camera shows the driver what is behind the truck, but the driver still has to notice, decide and brake. Search Eye applies the brakes itself. Many fleets run both.
Which trucks can use Search Eye?

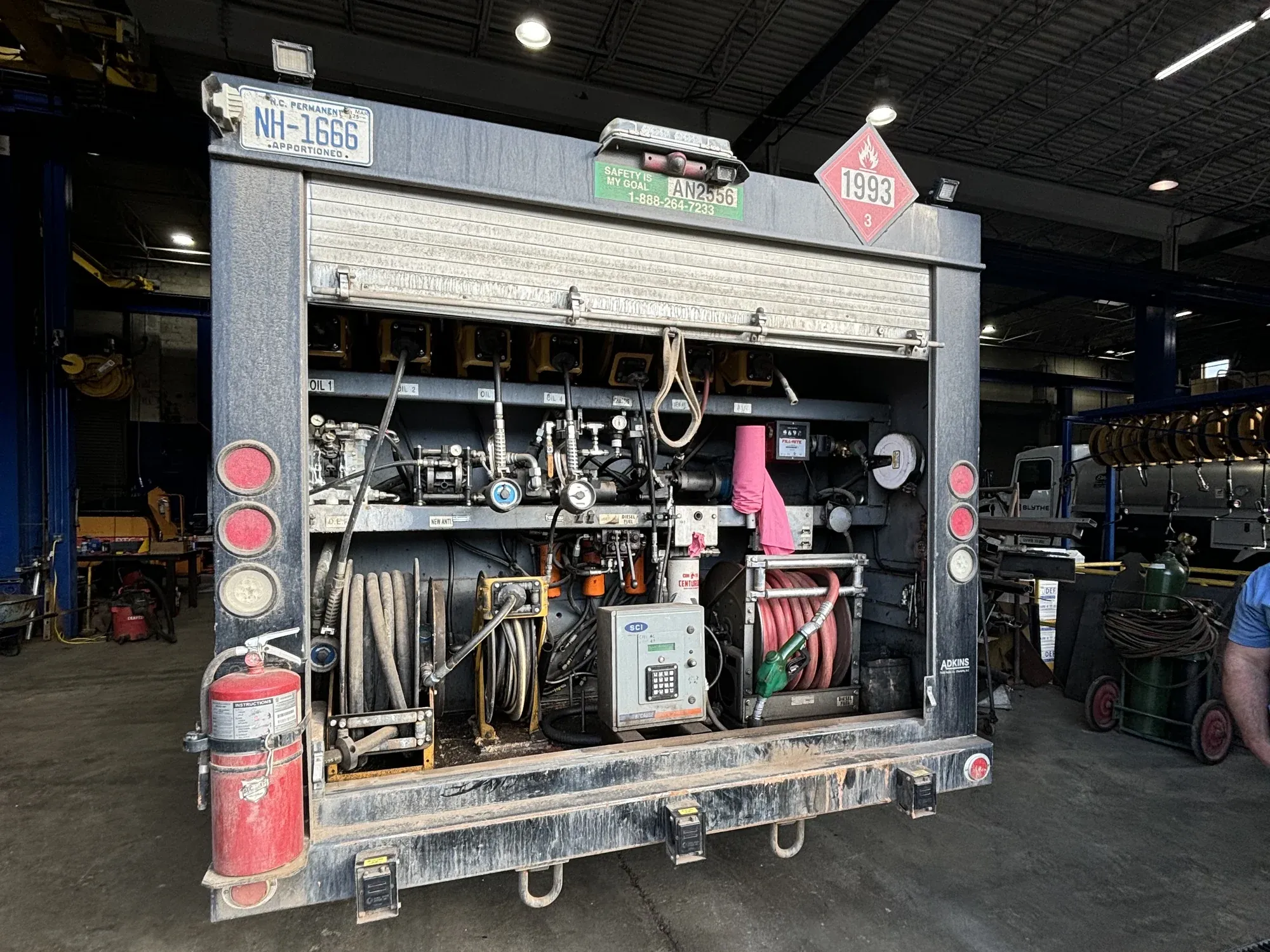

Any commercial vehicle with air brakes. The most common are garbage and recycling trucks. It is also used on dump trucks, cement mixers, paving trucks, tack trucks, tankers, refuel trucks and utility trucks.
How much does a system cost compared to an accident?
Search Eye is a one-time purchase with no subscription, and pricing depends on the setup and fleet size. One backing accident can cost a fleet tens of thousands of dollars once repairs, downtime, claims and insurance are added. Our ROI calculator shows the numbers for your fleet, and we send a quote on request.
What is the warranty?
Search Eye comes with a two-year warranty. Sensors typically last more than 10 years if they are not physically damaged.
What is the difference between the GS3000A and the GS4000A?
The GS3000A uses three rear sensors and the GS4000A uses four. Larger trucks or bodies with wider rear blind spots usually need four. We help you pick the right model for each truck type in your fleet.
How long does it take to install the automatic braking system?
Six hours or less per truck. The first install always takes the longest. Once a technician knows the process, a three-sensor system usually takes about three to four hours. It does not affect other truck systems.
Who can install Search Eye?
Your own mechanics, a Global partner in your region, or the body builder at the factory. Installation manuals are available in English, French and Spanish, and Global Academy has mechanic training.
Is the system plug and play, or do we supply our own parts?
Search Eye is an add-on that works with the truck’s existing air brakes. The kit includes the sensors, mounting boxes, in-cab control box, 75-foot wiring harness, junction box, brake valve and a sensor alignment tool. Your technician supplies vehicle-specific items like brake lines and some fittings.
The brakes triggered when the truck was more than 6 feet from an object. Is the sensor broken?
Usually not. The infrared sensors are more sensitive to reflective materials, like safety vests and road signs, and to bright white objects with large surfaces. Those can be detected beyond 6 feet.
- Overhead Protection is an optional configuration of the GS3000A.
Search Eye is a driver assistance system. It does not replace safe driving practices, mirrors, spotters or company backing procedures. The driver remains responsible for operating the vehicle safely.
